Summit 20 six-blade industrial ceiling fan01 / 03
Summit 20

Maximum coverage.
Precisely controlled.

Large distribution facilities

From$4,190Sample data
20 ft diameter
Up to 18,000 sq ft
10-year limited warranty

Ships in 5–8 business days
Northwind Summit 20

Built to move
more with less.

A large-format six-blade platform engineered for steady high-bay circulation.

Sample dataView complete specifications
Summit 20 compact direct-drive motor, reinforced hub and six blade roots
1Compact direct-drive motor
2Six aluminum airfoil blades
3Reinforced high-span hub
4Independent safety cable
20 ftsample diameter
1.5 kWsample input
10-yearsample limited warranty
Size and coverage

Large reach,
clearly planned.

Use these starting dimensions to check rack, structure and equipment clearance before final sizing review.

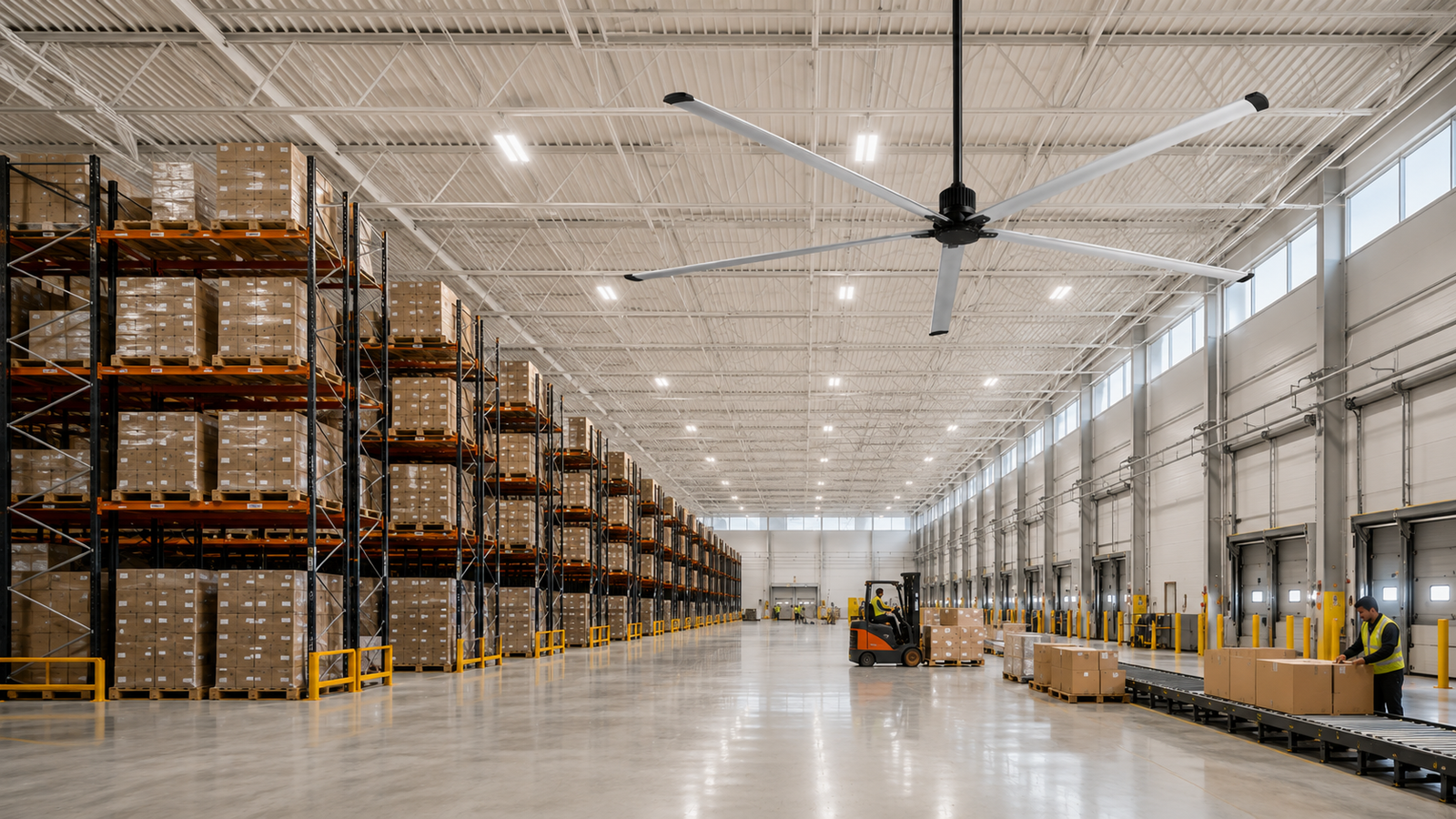

Distribution center used for Summit 20 sizing contextUp to 18,000 sq ft
20 ft diameter
Summit 20 six-blade fan dimension view
30–45 ft
sample mounting range
Project review
required

Summit 20 specifications

Motor
Direct drive
Blade platform
6 aluminum blades
Input power
1.5 kW
Airflow
Up to 485,000 CFM
Voltage
208 V / 240 V / 480 V
Control
Wall + app
Sample data

Control and installation

Large-scale air,
simple control.

Set speed, schedule operation and keep essential controls close at hand.

  1. 01Set fan speed
  2. 02Create a schedule
  3. 03Lock operator access
Summit 20 installed in a distribution center
NORTHWIND
OFF
9:41 Summit 20

Current speed

3of 6
Schedule
Lock controls

What's in the box

Wall controller
High-bay mount
Safety cable
Hardware kit
Installation guide
View installation resources Sample content
Summit 20 at scale

Wide coverage
for the
largest aisles.

A six-blade layout designed for broad, steady circulation across distribution and fulfillment floors.

Distribution & fulfillmentHigh-bay coverageProfessional sizing support
Sample contentSee distribution applications
Summit 20 installed above a high-bay distribution and fulfillment floor
Up to 18,000 sq ft30–45 ft mounting rangeWorldwide project support
Before you buy

A few final details.

Start with clear ceiling height, rack layout, structural spacing, obstructions and floor area. Our airflow team can review the plan before purchase.

Voltage and input-power values shown here are sample data. Final electrical supply and local requirements must be confirmed before ordering.

The sample package includes the fan assembly, wall controller, standard mount, safety cable, hardware kit and installation guide.

Yes. Use the project quote route for volume pricing, phased delivery and a site-by-site fan layout review.
